Hand Hacksaw Blades

Bimetal hacksaw and all hard hacksaw blade

Benefits

20 % Longer life, Faster Cutting
Reduces inventory of different TPI Blade
No Lost time for changing different TPI Blade
Less Cost per cut
Used in a variety of applications

Type	Dimension (mm)			Use On
Type	DIA (D)	THK (T)	BORE	Use On
27	180	7	22.23	Steel / Alloy Steel
27	230	7	22.23	Steel / Alloy Steel

VARI - TOOTH

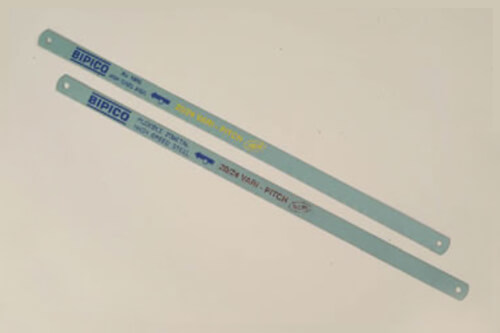

THE NEW 20/24 VARI TOOTH Hacksaw Blade
HAVE TWO BLADES IN ONE!

Benefits

20 % Longer life, Faster Cutting
Reduces inventory of different TPI Blade
No Lost time for changing different TPI Blade
Less Cost per cut
Used in a variety of applications

Bimetal High Speed Steel

A virtually unbreakable bimetal blade for superb cutting performance, wear resistance and safety. The combination of an M2 High Speed ground cutting edge electron beam welded to a flexible alloy back gives a level of cutting power and flexibility that is far superior to edge hardened or conventional flexible blades. Cuts through all types of materials including alloys and stainless steels.

SIZE IN M.M. (L x W x T)	SIZE IN INCHES (L x W x T)	TEETH PER INCH	UNIT OF PACK
250 x 12.5 x 0.63	10 x 1/2 x 0.025	14,18,24, 32	100
300 x 12.5 x 0.63	12 x 1/2 x 0.025	14,18, 24, 32	100

All Hard High Speed Steel

These blades are ideal to use when the work is held securely and the blade is not subjected to bending and twisting stresses. They hold the edge when cutting hard-to-machine alloys, maintaining straightness of the cut. The blades are uniformly hardened throughout.

SIZE IN M.M. (L x W x T)	SIZE IN INCHES (L x W x T)	TEETH PER INCH	UNIT OF PACK
250 x 12.5 x 0.63	10 x 1/2 x 0.025	14, 18, 24, 32	100
300 x 12.5 x 0.63	12 x 1/2 x 0.025	14, 18, 24, 32	100
300 x 16 x 0.80	12 x 5/8 x 0.032	14, 18, 24	100

Flexible High Speed Steel

These blades have hardened, high speed steel teeth with a tough, shock-absorbing back. They are shatter-resistant and excellent for interrupted cuts and sawing in cramped places where the blade is subject to bending and twisting stresses.

SIZE IN M.M. (L x W x T)	SIZE IN INCHES (L x W x T)	TEETH PER INCH	UNIT OF PACK
250 x 12.5 x 0.63	10 x 1/2 x 0.025	14, 18, 24, 32	100
300 x 12.5 x 0.63	12 x 1/2 x 0.025	14, 18, 24, 32	100
300 x 16 x 0.80	12 x 5/8 x 0.032	14, 18, 24	100

Low Alloy Steel All Hard Hand Hacksaw Blades & Junior Saw Blades

These carbon steel, all-purpose blades are for cutting mild steel, copper, brass, aluminum and similar materials.

SIZE IN M.M. (L x W x T)	SIZE IN INCHES (L x W x T)	TEETH PER INCH	UNIT OF PACK
150 x 6 x 0.4 junior saw	6 x 1/4 x 0.017	32	100
250 x 12.5 x 0.63	10 x 1/2 x 0.025	14, 18, 24, 32	100
300 x 12.5 x 0.63	12 x 1/2 x 0.025	14, 18, 24, 32	100

Bimetal	Full - Flexible	All Hard

POWER HACKSAW BLADES

All Hard High Speed Steel

High Speed Power hacksaw blades of high speed steel satisfy the highest requirements for power sawing bars, tubes, sections, etc. High Speed blades are specially hardened and precision set. Blades suitable for Kasto Machine can also be produced.

SIZE IN M.M. (L x W x T)	SIZE IN INCHES (L x W x T)	TEETH PER INCH	UNIT OF PACK
300 x 25 x 1.25	12 x 1 x 0.050	10,14	20
350 x 25 x 1.25	14 x 1 x 0.050	10,14	20
400 x 25 x 1.25	16 x 1 x 0.050	10,14	10
425 x 25 x 1.25	17 x 1 x 0.050	10,14	10
450 x 25 x 1.25	18 x 1 x 0.050	10,14	10
350 x 32 x 1.60	14 x 1.1/4 x 0.062	6,10	10
400 x 32 x 1.60	16 x 1.1/4 x 0.062	6,10	10
425 x 32 x 1.60	17 x 1.1/4 x 0.062	6,10	10
450 x 32 x 1.60	18 x 1.1/4 x 0.062	6,10	10
450 x 40 x 1.60	18 x 1.1/2 x 0.062	6,10	10
450 x 40 x 2.00	18 x 1.1/2 x 0.075	4,6,10	10
450 x 45 x 2.25	18 x 1.3/4 x 0.088	4,6,10	10
500 x 32 x 2.00	20 x 1.1/4 x 0.075	4,6	10
500 x 40 x 2.00	20 x 1.1/2 x 0.075	4,6,10	10
525 x 40 x 2.00	21 x 1.1/2 x 0.075	4,6,10	10
525 x 45 x 2.25	21 x 1.3/4 x 0.088	4,6	10
550 x 40 x 2.00	22 x 1.1/2 x 0.075	4,6,10	10
600 x 40 x 2.00	24 x 1.1/2 x 0.075	4,6,10	10
600 x 45 x 2.25	24 x 1.3/4 x 0.088	4,6,10	5
600 x 45 x 2.25	24 x 1.3/4 x 0.088	4,6	5
600 x 50 x 2.00	24 x 2 x 0.075	4,6,10	5
600 x 40 x 2.50	24 x 1.1/2 x 0.100	4,6	5
600 x 50 x 2.50	24 x 2 x 0.100	4,6	5
700 x 40 x 2.50	28 x 1.1/2 x 0.100	4,6	5
700 x 50 x 2.50	28 x 2 x 0.100	4,6	5
750 x 40 x 2.50	30 x 1.1/2 x 0.100	4,6	5
750 x 50 x 2.50	30 x 2 x 0.100	4,6	5
800 x 50 x 2.50	32 x 2 x 0.100	4,6	5
900 x 50 x 2.50	36 x 2 x 0.100	4,6	5

Bimetal High Speed Steel

Combining two materials, tooth line with high alloy high speed steel and body of tough tool steel the blade results in maximum wearing strength and cutting capability, making it far superior to ordinary high-speed steel blades. Blades suitable for Kasto Machines can also be produced.

SIZE IN M.M. (L x W x T)	SIZE IN INCHES (L x W x T)	TEETH PER INCH	UNIT OF PACK
300 x 25 x 1.25	12 x 1 x 0.050	10,14	20
300 x 32 x 1.60	12 x 1.1/4 x 0.062	6,10	20
350 x 25 x 1.25	14 x 1 x 0.050	6,10,14	20
350 x 32 x 1.60	14 x 1.1/4 x 0.062	4,6,10	20
350 x 32 x 2.00	14 x 1.1/4 x 0.075	4,6,10	20
350 x 38 x 2.00	14 x 1.1/2 x 0.075	4,6,10	20
400 x 32 x 1,60	16 x 1.1/4 x 0.062	4,6,10,14	20
400 x 32 x 2.00	16 x 1.1/4 x 0.075	4,6,10	20
400 x 38 x 2.00	16 x 1.1/2 x 0.075	4,6,10	20
425 x 32 x 1.60	17 x 1.1/4 x 0.062	10	20
450 x 32 x 1.60	18 x 1.1/4 x 0.062	4,6,10,14	20
450 x 32 x 2.00	18 x 1.1/4 x 0.075	4,6,10	10
450 x 38 x 2.00	18 x 1.1/2 x 0.075	4,6,10	10
450 x 45 x 2.25	18 x 1.3/4 x 0.088	4,6	10
475 x 45 x 2.25	19 x 1.3/4 x 0.088	6	10
500 x 38 x 2.00	20 x 1.1/2 x 0.075	4,6,10	10
500 x 45 x 2.25	20 x 1.3/4 x 0.088	4,6	10
500 x 50 x 2.50	20 x 2 x 0.100	4,6	10
525 x 38 x 2.25	21 x 1.1/2 x 0.075	6	10
525 x 45 x 2.25	21 x 1.3/4 x 0.088	4,6	10
525 x 50 x 2.50	21 x 2 x 0.100	4,6	10
550 x 45 x 2.25	22 x 1.3/4 x 0.088	6	10
550 x 50 x 2.50	22 x 2 x 0.100	4,6	10
575 x 45 x 2.25	23 x 1.3/4 x 0.088	4	10
575 x 50 x 2.50	23 x 2 x 0.100	4	10
600 x 45 x 2.25	24 x 1.3/4 x 0.088	6	5
600 x 50 x 2.50	24 x 2 x 0.100	4,6	5
650 x 50 x 2.50	26 x 2 x 0.100	4,6	5
700 x 50 x 2.50	28 x 2 x 0.100	4,6	5
