Swing Frame Grinding

Sunner India Make Swing Frame Grinders Are Sturdy and rigid as the main-frame is made of Seamless pipe.

  • Well balanced and hence easy to operate
  • Increase in Productivity as it is vibration-free
  • Handle is adjustable can be locked at any desired position
  • Belt guard is provided for safety
Swing Frame Grinder - Specification
Model Sl 12 Sl 16 Sl 20 Sl 24
Grinding Whool Dia x Width x bore 300 x 40 x 38.1 400 x 63 x 152.4 500 x 75 x 203.2 600 x 100 x 203.2
Birinding Wheel Speed 2200 rpm 2100 rpm 2100 rpm 1500 rpm
Motor HP 5.0 / 7.5 7.5 / 10 10 / 15 15 / 20
Cenre Dist between motor and grinding wheel 900 mm 1400 mm 1700 mm 2000mm
Weight ( Approx ) 100 Kg 200 Kg 300 Kg 500 Kg

Other Products

Single Speed Machines

Multi Speed Machines

Tool Holders and Accessories

Swing Frame Grinding

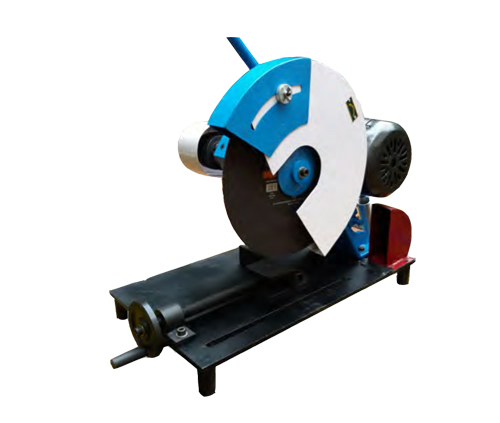

Cutter Machine
